Structured Cabling Cabinets and Accessories
STRUCTURED CABLING CABINETES AND ACCESSORIES
You can find a complete structured cabling solution in our stores.
Contact your nearest Lanitis Electrics shop.

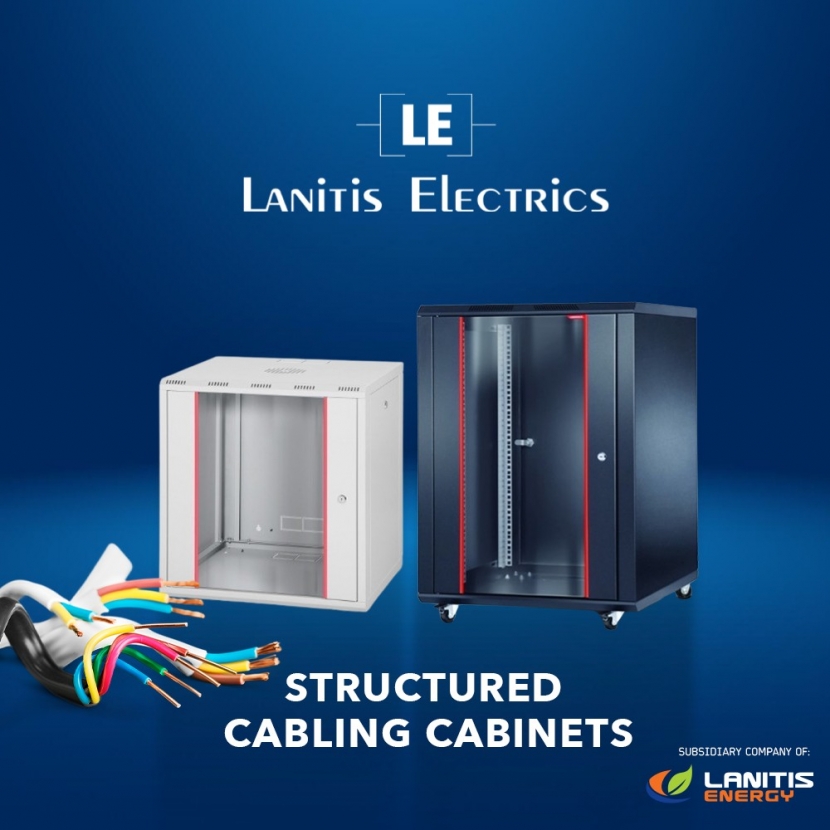

FORMRACK ALFA-12U450 12U 450mm Alfaline Wall Mounting Cabinet (Pre-Assembled)
The front and side covers are openable, lockable and easily removable
The rear cover is made by high strength 1,5mm DKP sheet that provides high strength with holes for wall mounting
Ventilation is provided by cooling units with 1 or 2 fans
There are three options of depth: 450mm, 560mm and 600mm. Five options of height: 7U, 9U, 12U, 16U and 20U
There are two mounting profiles in 450mm depth cabinets and four mounting profiles in 560mm and 600mm depth cabinets
Cabinets have cable entries from 3 different points on the bottom frame, top frame and rear cover
If required, it can be used as a floor type by attaching a fixed foot or castor
All 3 doors of the cabinet are lockable and can be opened with the same combination key
Painted by impact-resistant, high strength, electrostatic Ral 7035 texture grey colour or Ral 9005 black colour.
All test procedures have been carried out and has RoSH, CE, EN 61587-1 standards.
